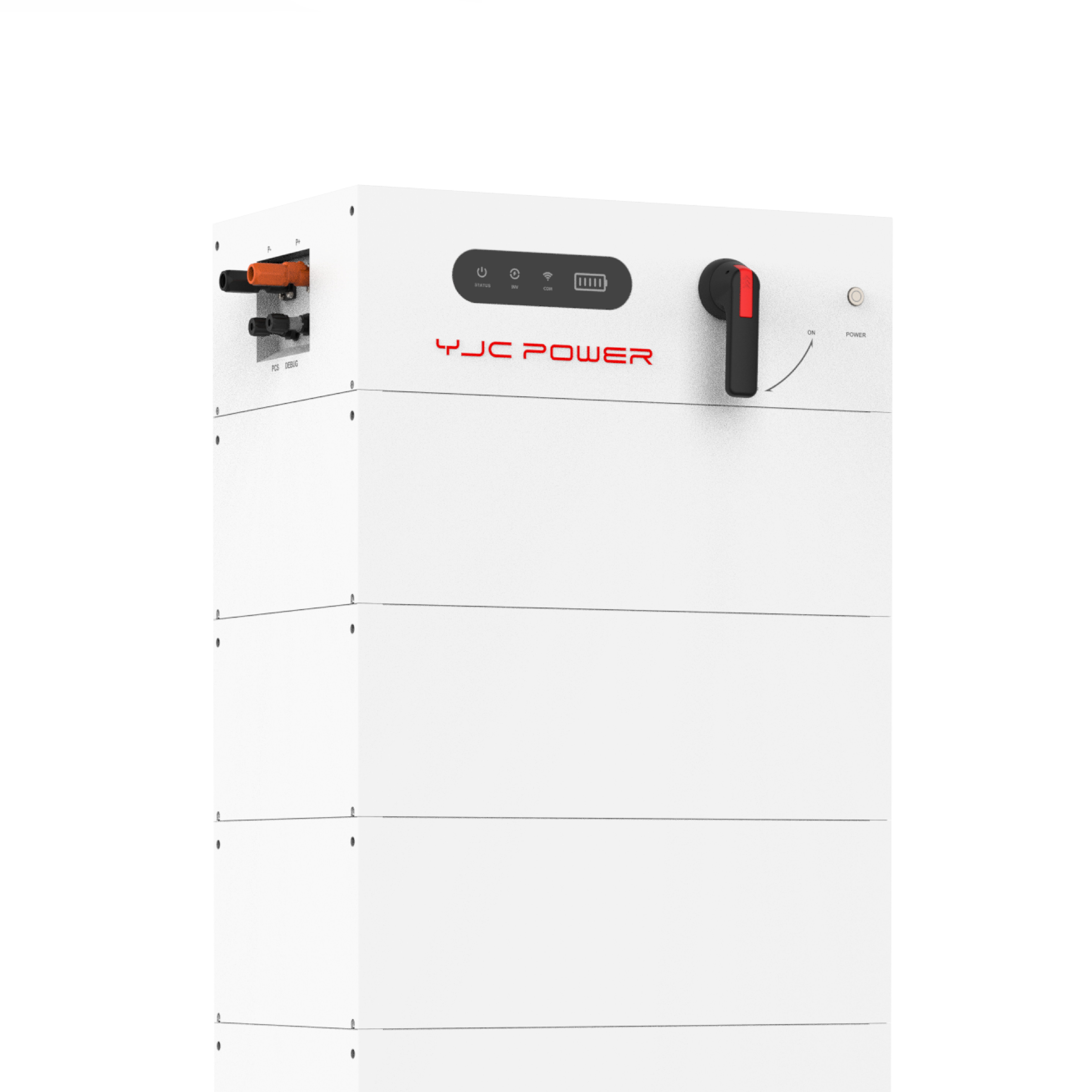

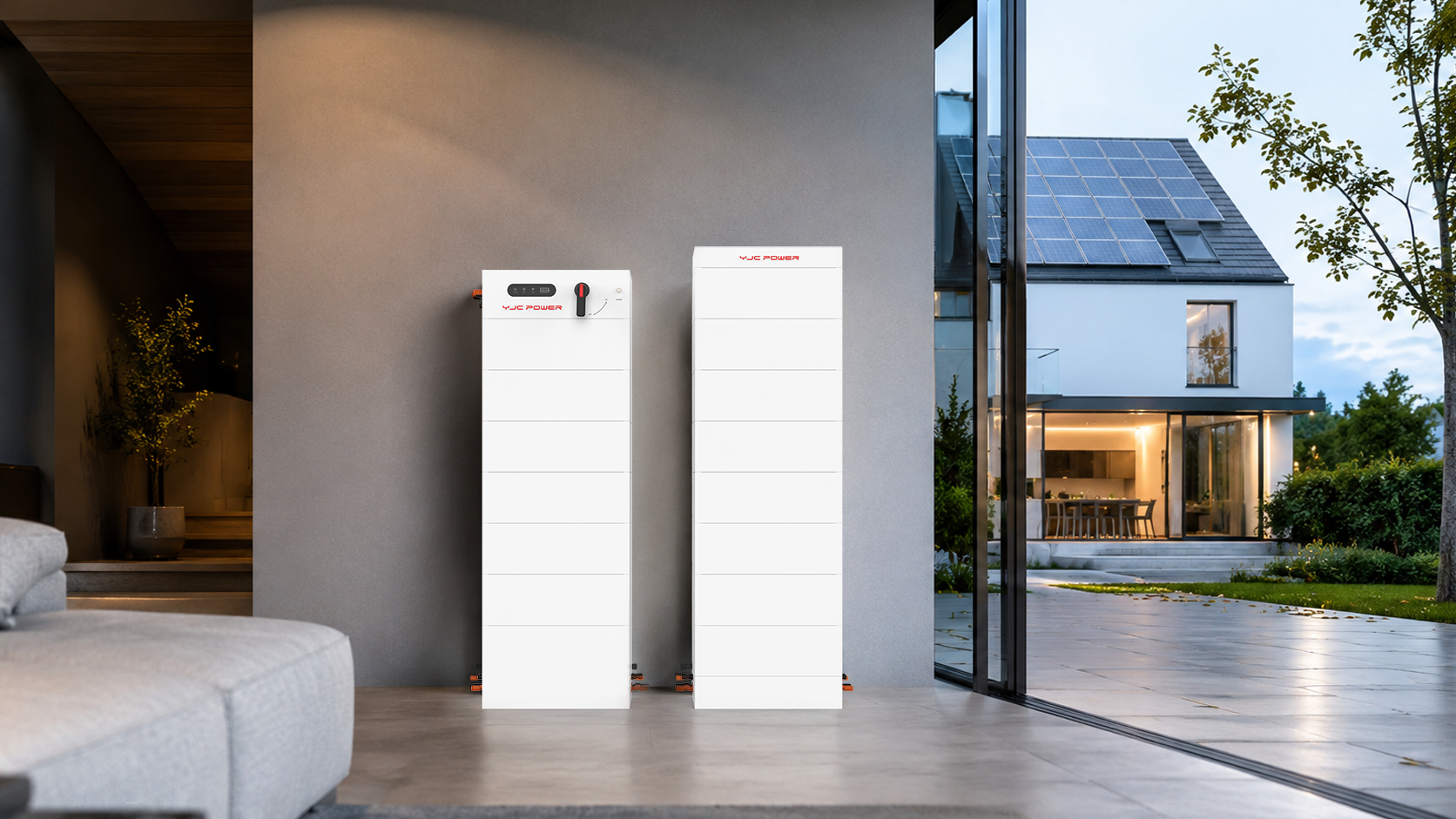

Modular High‑Voltage Stacked Energy Storage System

Modular High‑Voltage Stacked Energy Storage System

YJC‑HV177

YJC‑HV177

Product Advantages

High Pressure, High Efficiency, Cost‑Saving

High Pressure, High Efficiency, Cost‑Saving

High‑voltage direct‑connected three‑phase inverters feature low energy losses. With reduced operating current, they require less cable material, thereby lowering wiring costs.
Modular Stacking for Flexible Scalability

Modular Stacking for Flexible Scalability

Modular design allows capacity to be tailored to your needs. Expand later by simply adding battery modules—no changes to existing wiring required. This enables phased investment and ensures quick, straightforward installation.
Multiple Security Protections

Multiple Security Protections

Class A LiFePO4 battery cells with a long cycle life. BMS multi‑level protection, temperature control and heat dissipation ensure safe and stable operation.
Intelligent Operations and Maintenance With Strong Compatibility

Intelligent Operations and Maintenance With Strong Compatibility

Compatible with mainstream high‑voltage inverters. Supports remote monitoring, fault diagnosis, and remote upgrades to reduce on‑site maintenance. Can integrate with energy management systems to enable diverse energy storage strategies.

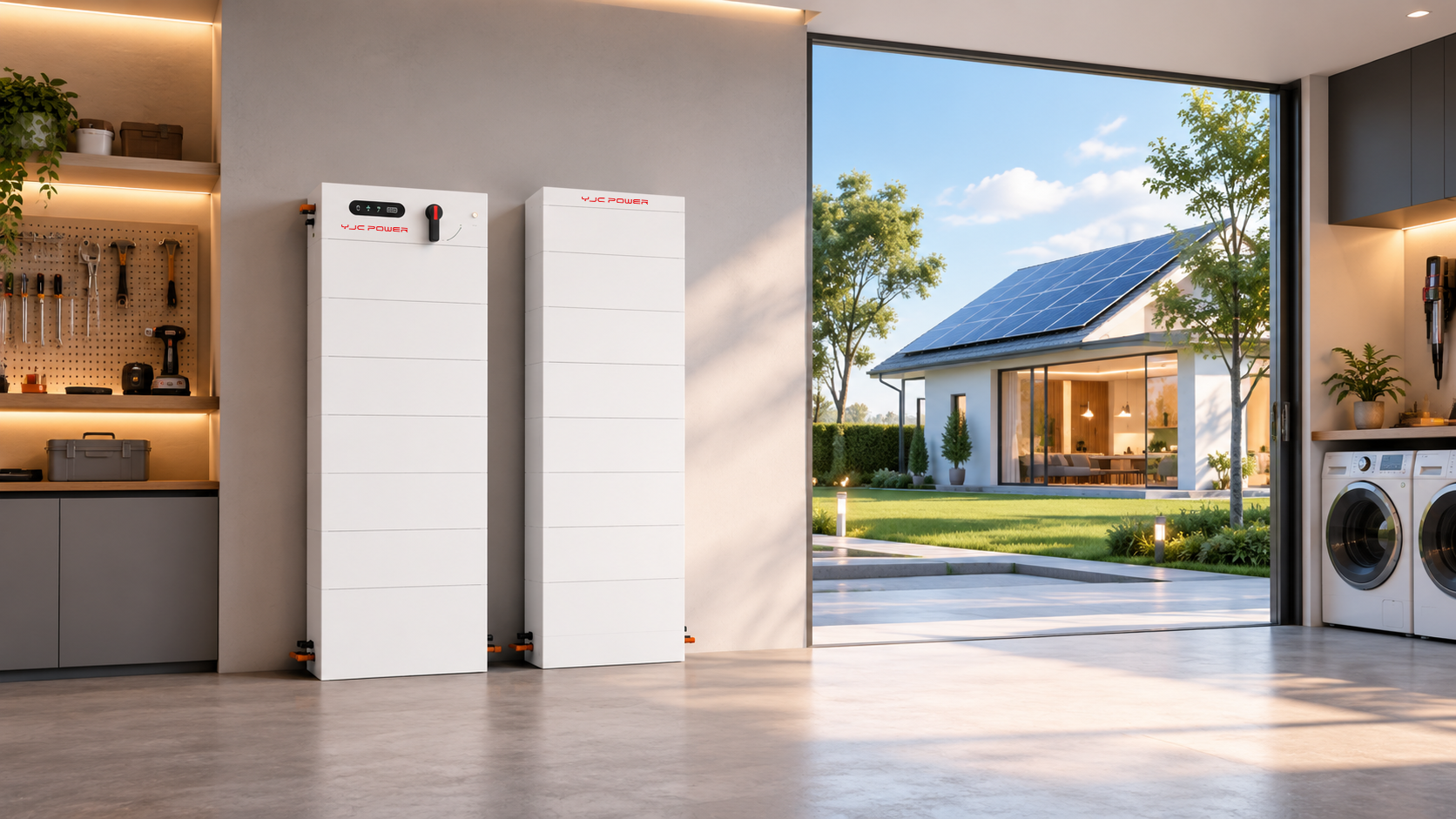

Adapts to Multiple Application Scenarios

Adapts to Multiple Application Scenarios

Industrial Parks: Peak shaving and valley filling, with self‑generated and self‑consumed solar power. Commercial Buildings: Emergency backup power supply during outages.
Adapts to Multiple Application Scenarios

Adapts to Multiple Application Scenarios

Mining/Overseas Projects: Microgrids and off‑grid power supply. Old energy storage projects: Simple retrofitting and capacity expansion

Product parameters

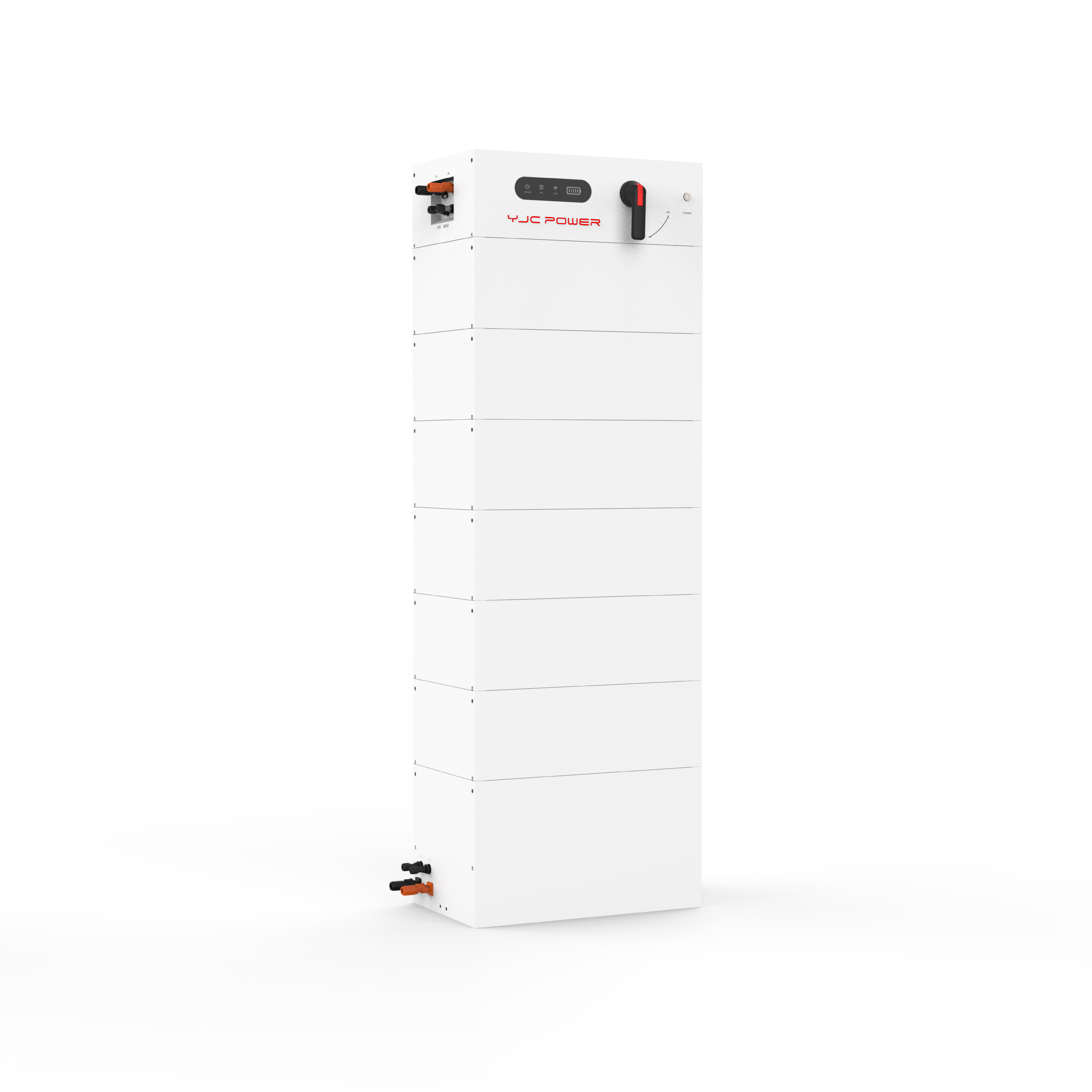

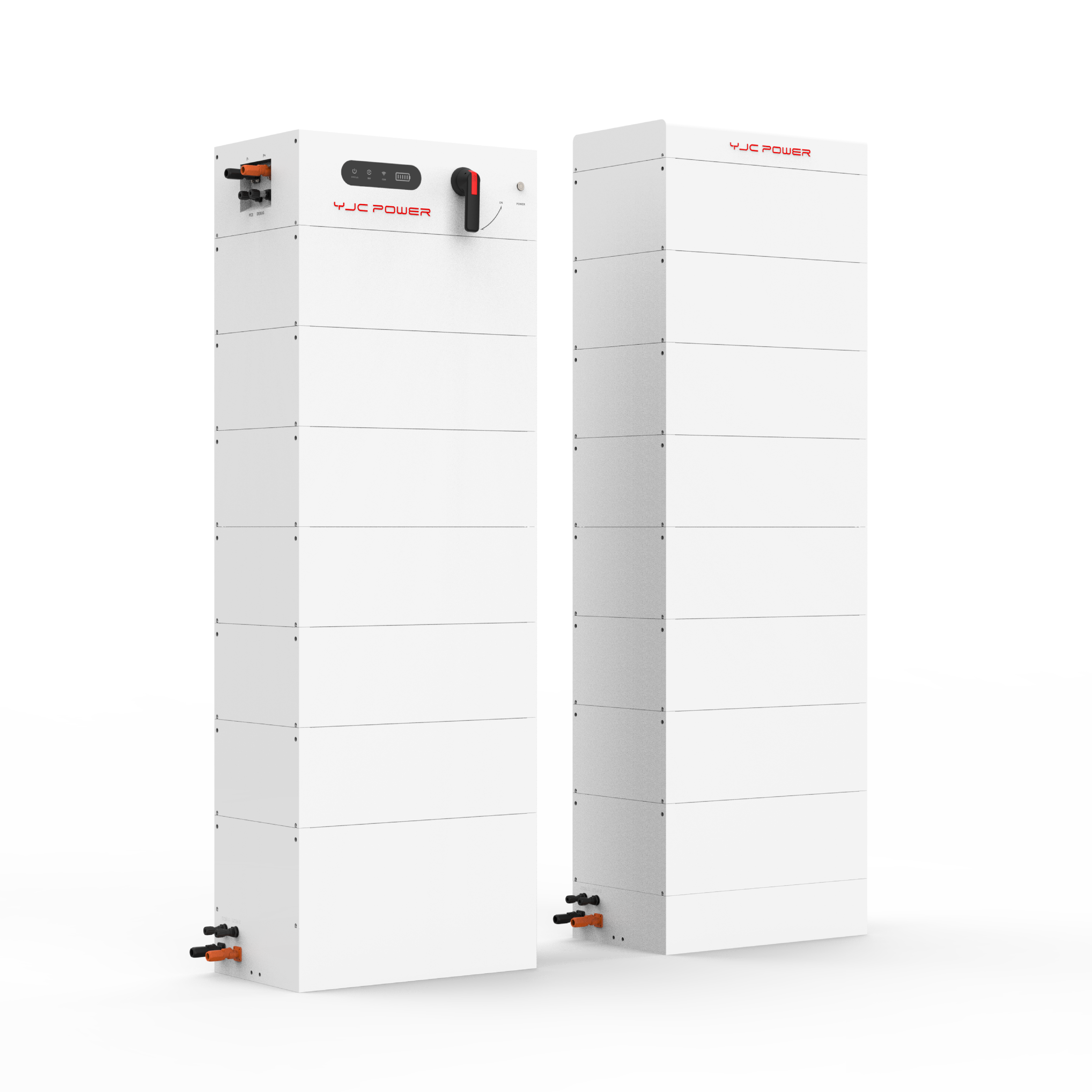

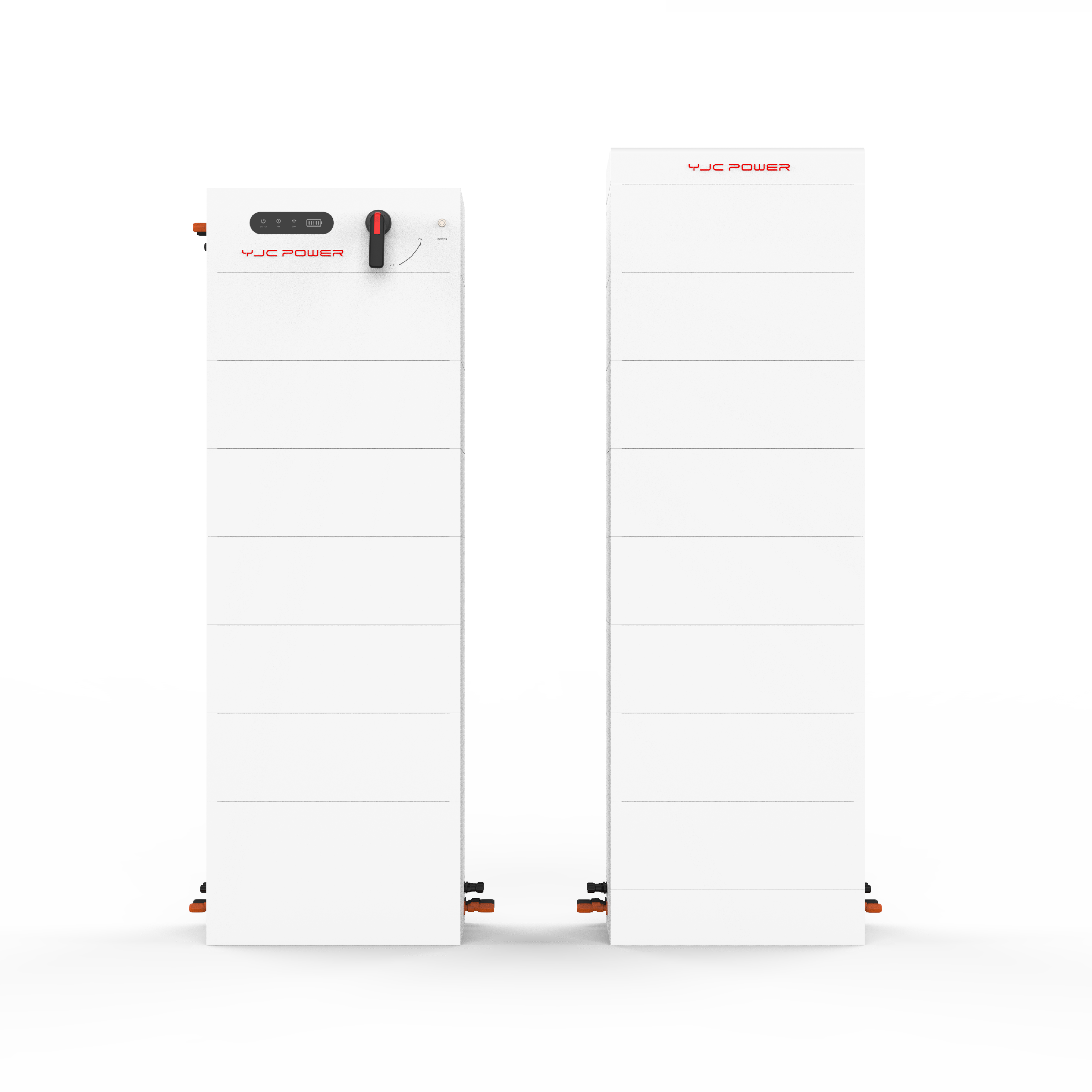

Modular High‑Voltage Stacked Energy Storage System
Modular High‑Voltage Stacked Energy Storage System
Modular High‑Voltage Stacked Energy Storage System
Modular High‑Voltage Stacked Energy Storage System
Modular High‑Voltage Stacked Energy Storage System
Modular High‑Voltage Stacked Energy Storage System
ModelYJC‑HV177
Battery TypeLiFePO4
Nominal Energy61.44kWh
Nominal Capacity100Ah
Nominal Voltage614.4V
Charge Cut‑off Voltage700.8V
Discharge Cut‑off Voltage480V
Recommended Charge/Discharge Current50A/50A
Max. Continuous Charge/Discharge Current100A/100A
Peak Charge/Discharge Current200A(5S)
Depth of Discharge95%
Net Weight600kg
Dimensions(W × H × D)810×1330×520mm
Charging Temperature Range0~50℃
Discharging Temperature Range-20~60℃
Communication Protocol
Communication MethodCAN / RS485
Compatible Inverter BrandsDeye/Growatt/MEGAREVO/GoodWe/SRNE/Sofar/Solis/AUX/AFORE/Voltronic/Sunways
General Specifications
Cell Cycle Life≥6000 cycles
IP RatingIP65
Certifications & Safety StandardsCE‑EMC/IEC62619/UN38.3
Product VersionPLUS
