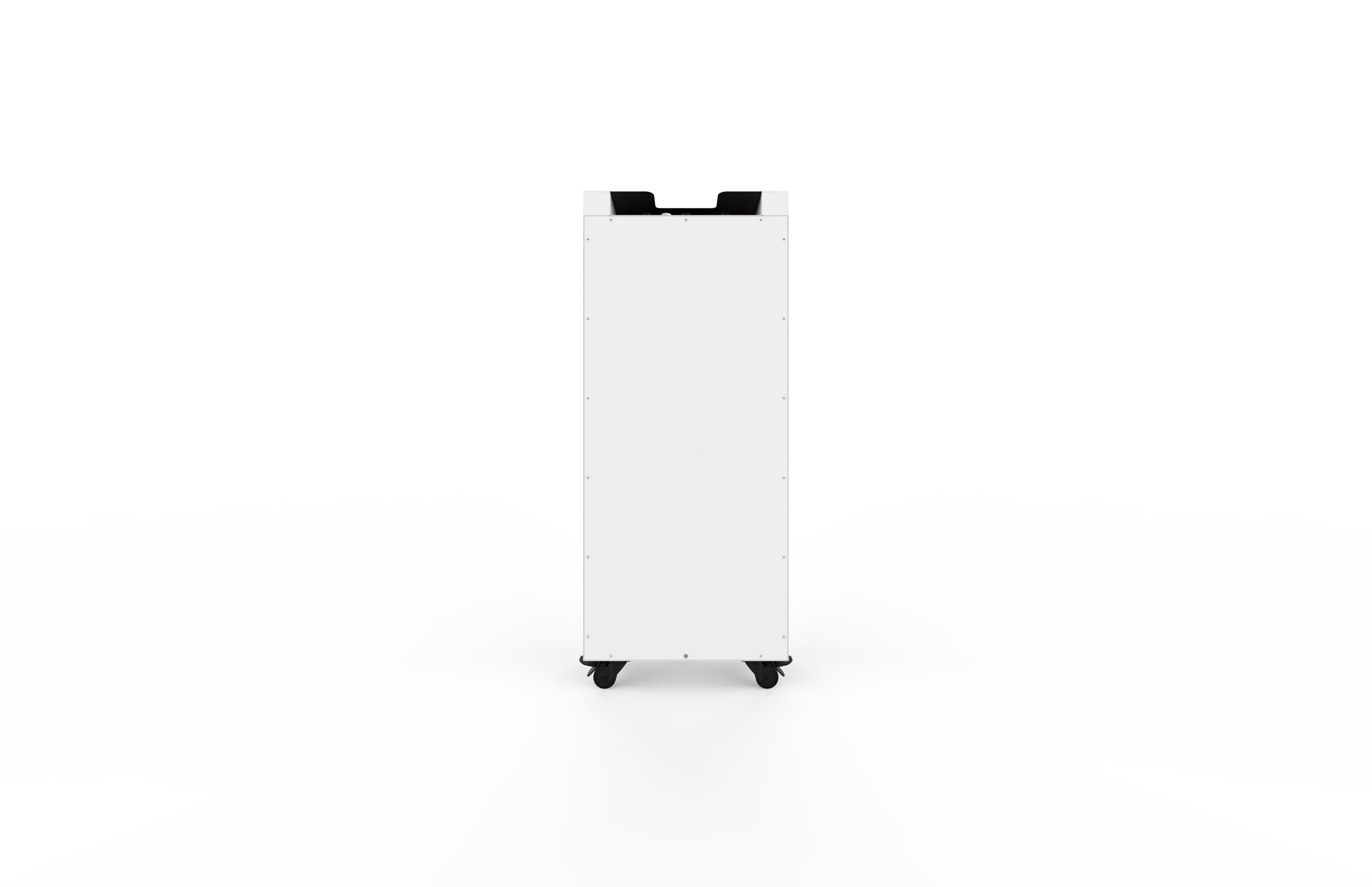

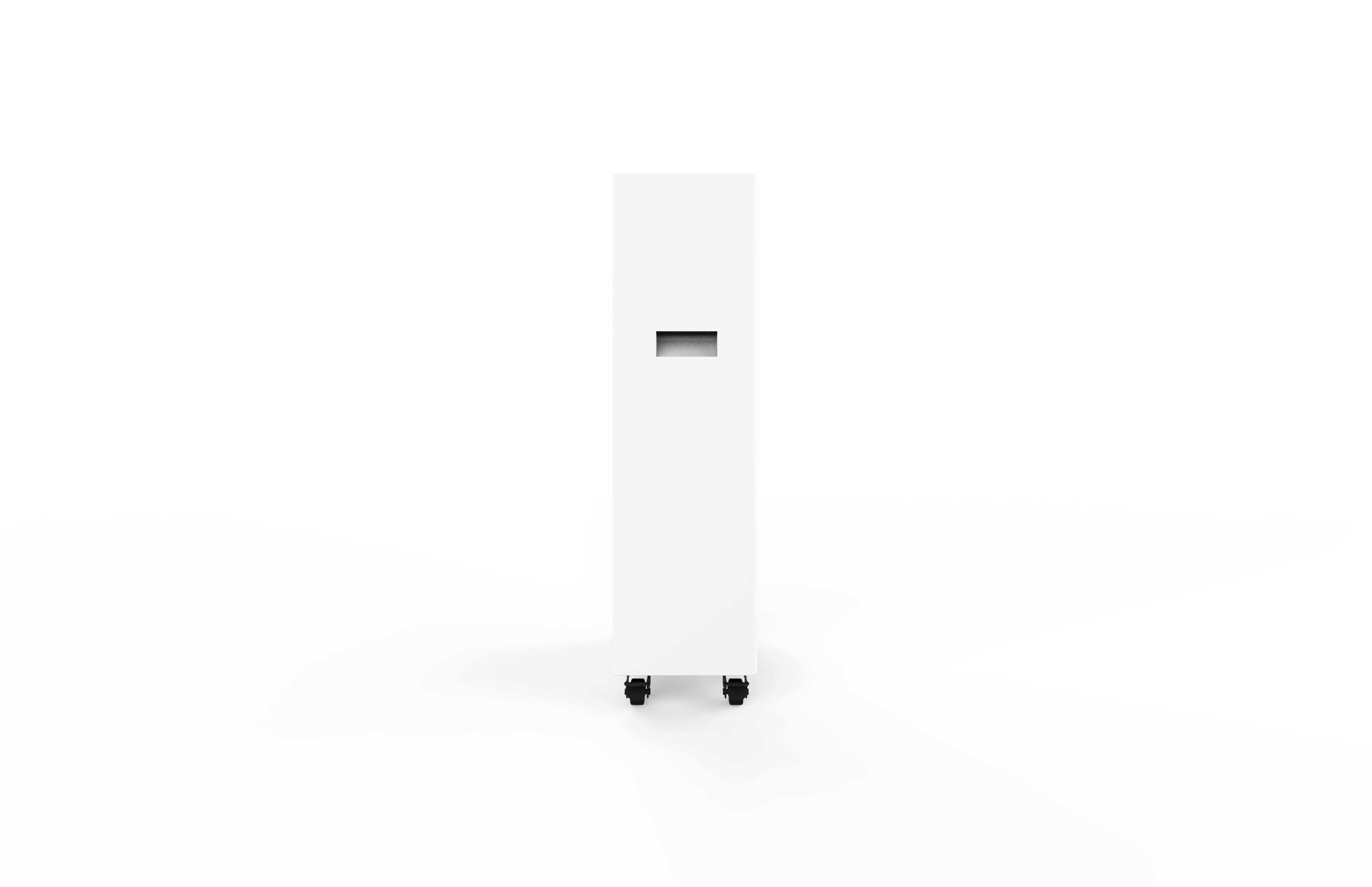

10.24kWh

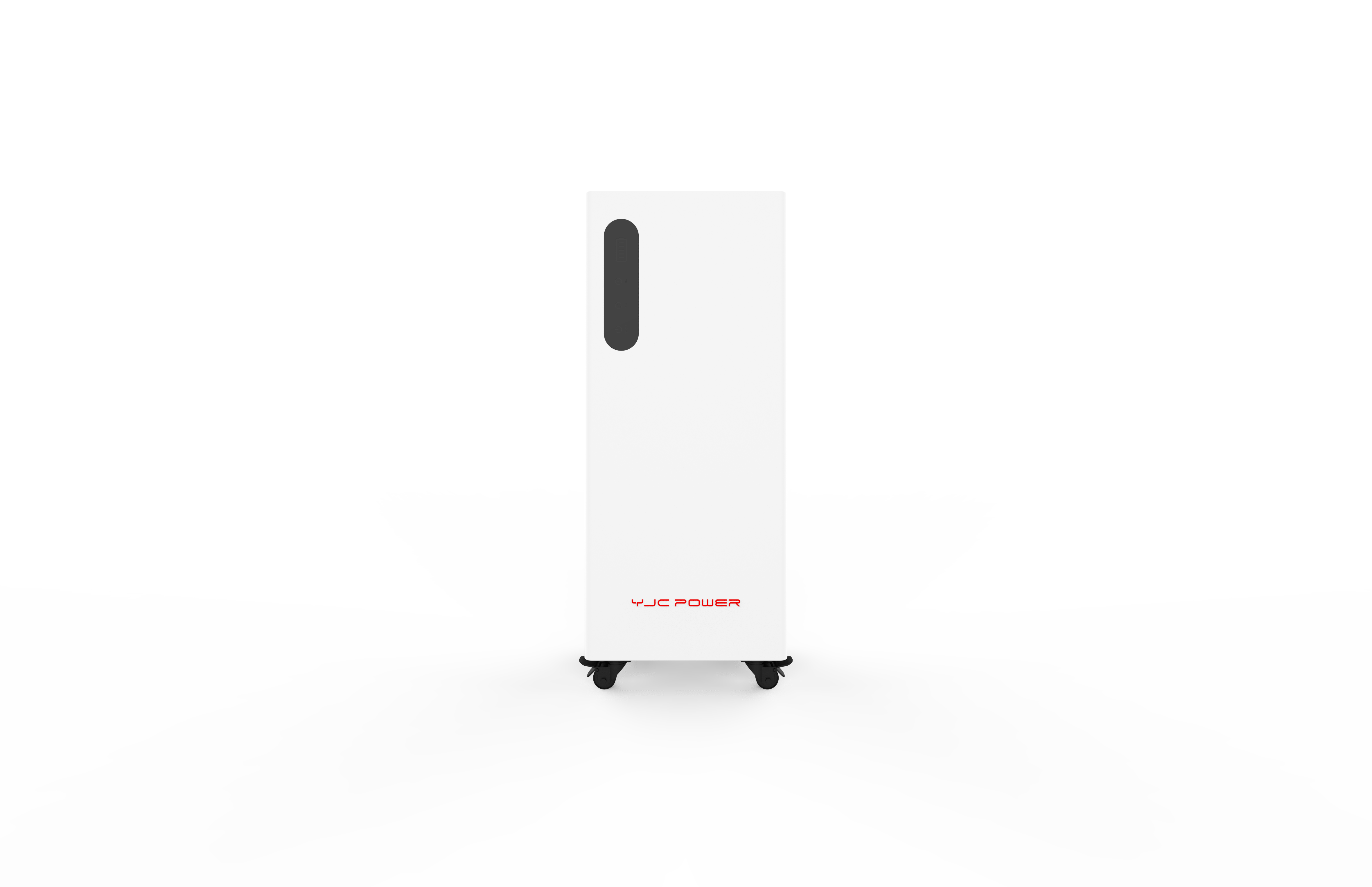

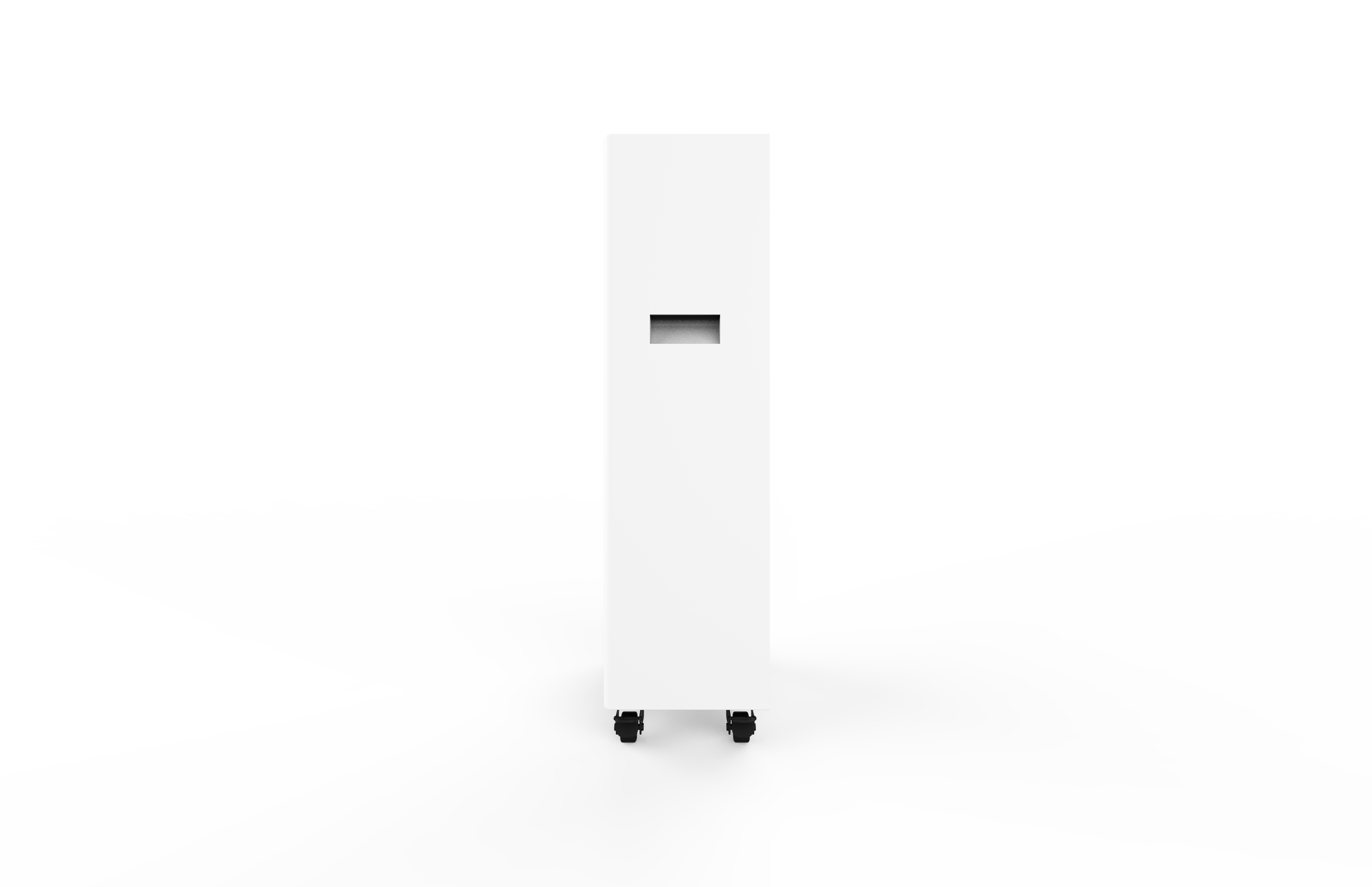

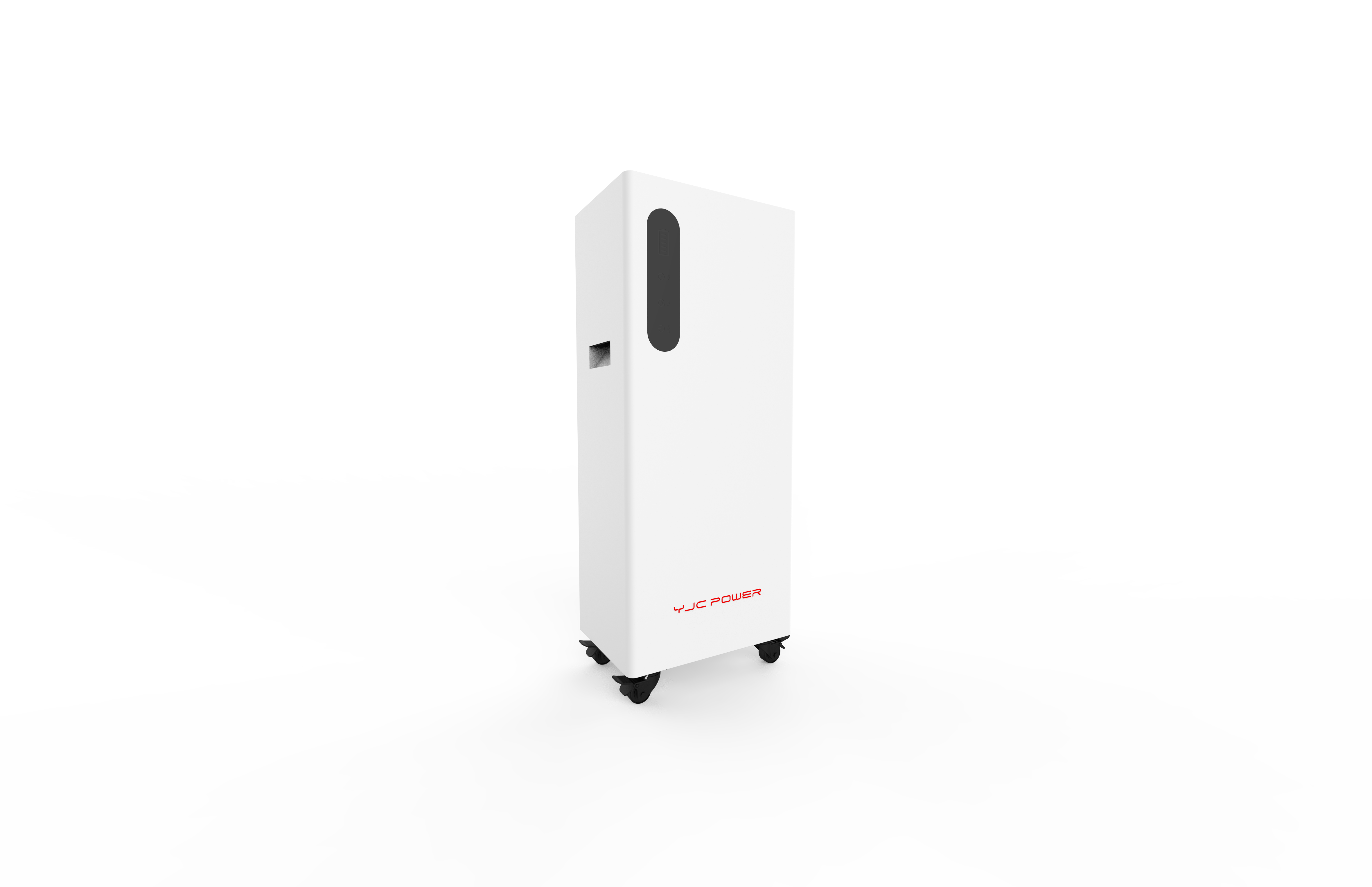

Low-Voltage Floor-Standing Wheeled Energy Storage Battery
YJC‑LV10.5
10.24kWh
YJC‑LV10.5
Product Advantages
CELL CYCLE LIFE
≥6000 cycles
STRONG PERFORMANCE
Cold resistance (-20‑60℃), high temperature resistance (0‑50℃)
HIGH SAFETY
Adopt cutting‑edge lithium iron phosphate cell technology.
MODULAR DESIGN
Supports multi‑module parallel connection, simple installation and maintenance.
WI‑FI MONITORING
Built‑in Wi‑Fi module for remote data monitoring. Users can check and control the system via mobile App or web portal.
Product parameters
| Model | YJC‑LV10.5 |
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 10.5kWh |
| Nominal Capacity | 206Ah |
| Nominal Voltage | 51.2V |
| Charging Cut‑off voltage | 58.4V |
| Discharging End‑off voltage | 40V |
| Recommended Charge / Discharge Current | 103A |
| Max.Power Charge / Discharge Current | 150A |
| Peak Power Charge / Discharge Current | 200A(5S) |
| Depth of discharge | 95% |
| Weight | 70kg |
| Dimension(W*H*D) | 520*430*249mm |
| Charging Temp.Range | 0~50℃ |
| Discharging Temp.Range | -20~60℃ |
| Communication | CAN / RS485 |
| Compatible Inverters | SMA/Victron/SolarEdge/GoodWe /Growatt/Deye/Solis/SolaX/Sofar/LuxPower/SRD/Sunways/MUST/AFORE/Voltronic |
| Cell cycle Life | ≥6000 Cycles |
| Certification | UN38.3 |
| Version | SE |
Product parameters are for reference only, subject to confirmation by our sales team.
